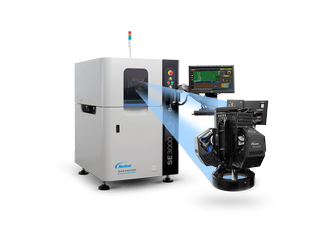

The new SE3000S™ 3D SPI system incorporates the industry leading MRS sensor technology with a finer resolution for the...
Learn moreSQ3000M2
Superior performance ideal for wirebond applications. SQ3000M2 automated optical inspection (AOI) ensures product...
Learn moreSQ3000S Multi Function 3D AOI, SPI & CMM
The Ultimate in Speed and Accuracy with Multi-Process Capability
Learn moreMX3000™ 3D AOI
The MX3000™ is powered by CyberOptics’ breakthrough 3D sensing technology comprising of two MRS® Sensors delivering...
Learn moreSE3000™/ SE3000-X™ 3D SPI
Maximize yields with the World’s First SPI system incorporating the MRS® Sensor technology. When only the very best...
Learn more003 Series Volume Metering Valves | Nordson
The 003 Series Volume Metering Valve is a positive displacement meter valve that automatically dispenses a small,...
Learn more
What Is Automated Optical Inspection (AOI)?
Automated optical inspection (AOI) is a non-contact inspection method used in PCB fabrication, SMT assembly, and PCB assembly to automatically identify visible defects. An AOI machine captures detailed images of a printed circuit board and analyzes them against defined inspection criteria. As part of modern PCB inspection processes, AOI systems provide fast, repeatable analysis of board surfaces, enabling manufacturers to detect defects before products move further down the SMT production line.
AOI inspection machines detect:
- Missing or misaligned components
- Insufficient or excess solder
- Solder bridges and opens
- Polarity errors
- Lifted leads
- Surface and placement defects
Modern AOI equipment includes both 2D and 3D capabilities. While 2D AOI systems analyze surface contrast and geometry, 3D AOI adds height measurement and volumetric analysis for improved accuracy.
AOI Systems in PCB Manufacturing and Surface Mount Technology (SMT)
AOI systems are commonly integrated into SMT production lines at several stages:
- After solder paste printing (supporting solder paste inspection)
- After component placement
- After reflow
- After conformal coating
In AOI manufacturing environments, early defect detection prevents downstream failures and reduces costly rework. An AOI machine for PCB assembly provides immediate feedback to operators and process engineers, improving line stability and throughput.
By deploying AOI systems in PCB manufacturing, companies gain:
- Improved first-pass yield
- Reduced defect escape
- Faster root cause identification
- Greater process consistency
AOI is especially important in PCB applications as component density increases and tolerances tighten. Effective PCB inspection ensures that solder joints, component placement, and board integrity meet strict quality requirements throughout the PCB manufacturing process.
3D Automated Optical Inspection Equipment
3D AOI equipment enhances inspection precision by capturing height and shape data using structured light and multi-angle projection. These automated visual inspection systems measure solder volume, coplanarity, and fine-pitch components with greater reliability than 2D-only systems. For complex assemblies, 3D AOI enhances PCB inspection by providing detailed height and volume measurements that traditional visual inspection methods cannot capture.
Benefits of 3D AOI systems include:
- Reduced false calls
- More accurate solder joint evaluation
- Improved inspection of complex geometries
- Enhanced reliability in advanced packaging
For manufacturers producing high-reliability electronics, 3D AOI systems provide critical process validation.
AOI Equipment for Electronics Manufacturing
Nordson AOI equipment supports a wide range of applications across:
- PCB assembly
- PCB fabrication
- PCB manufacturing
- Semiconductor packaging
- Advanced electronics production
The portfolio includes high-speed 3D AOI systems such as the SQ3000V2, SQ5000Pro, and SQ7000+, designed for SMT manufacturing environments.
AOI systems work alongside automated dispensing systems and other material application technologies to verify process outcomes. For example:
- After selective soldering, an AOI inspection machine evaluates solder joint integrity.
- After conformal coating, automated visual inspection systems confirm coverage consistency.
- In advanced packaging workflows, AOI systems validate placement accuracy before encapsulation.
This complementary relationship between material application and AOI systems enables complete process control.
AOI Software and Inspection Technology
Modern AOI systems rely on intelligent automated optical inspection software to improve detection accuracy and streamline test analysis.
Advanced AOI technology incorporates:
- AI-assisted defect classification
- Adaptive inspection thresholds
- Centralized data reporting
- Smart factory integration
- Process traceability tools
For semiconductor and advanced packaging environments, dedicated semiconductor inspection software platforms support wafer-level and panel-level inspection workflows.
By transforming inspection data into actionable insights, AOI systems support continuous improvement initiatives in manufacturing environments.
AOI Systems for High-Reliability Applications
In automotive electronics, aerospace systems, and semiconductor manufacturing, inspection performance directly affects long-term reliability.
AOI systems help ensure:
- IPC compliance
- Repeatable inspection standards
- Reduced defect escape rates
- Documented AOI test validation
As PCB fabrication becomes more complex, AOI systems provide consistent inspection performance at production speed.
AOI and Related Inspection Technologies
AOI systems are often deployed alongside complementary inspection technologies to achieve comprehensive defect detection.
Related Nordson solutions include:
- Automated X-ray inspection systems (AXI)
- Conformal coating inspection systems
- SMT software platforms
- Advanced inspection and metrology systems
Combining AOI equipment with additional inspection technologies provides deeper visibility into both surface and hidden defects.
Complete PCB Assembly Workflow Support
Nordson supports the complete electronics manufacturing process, from material application systems to AOI systems and data-driven optimization.
Material application → Process stabilization → AOI → Data-driven optimization
By integrating AOI technology into SMT assembly lines, manufacturers improve quality control while maintaining production efficiency.
