How Optical Inspection Protects Advanced PCBs

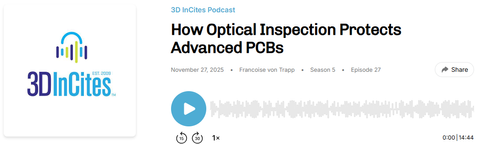

3D InCites Podcast Host Francoise von Trapp is interviewing Vidya Vijay, Director, Business Development and asking about pain points during optical inspection and specific challenges engineers face today.
A crowded server board with ten thousand parts doesn’t forgive sloppy inspection - and neither do pricey GPUs and chiplets. From the floor of Productronica in Munich, we dig into how automated optical inspection keeps advanced packages honest once they hit the PCB line, where solder quality, coplanarity, and sheer component variety can make or break yield. Vidya Vijay from Nordson Test & Inspection joins us to unpack why AOI remains the fastest path to actionable insight, when X‑ray is the smarter choice, and how new sensor design changes the game for reflective, high‑mix assemblies.
We explore the real pain points engineers face today: shiny dies that confuse cameras, BGAs packed with I/O where hidden defects hide under the body, and miniature passives that crowd tight keep‑outs. Vidya explains how three‑phase profilometry creates true 3D height maps by projecting fringe patterns and reading them from multiple angles, enabling precise checks for corner fill, underfill, and coplanarity. We also get into multi‑reflection suppression, Nordson’s approach to filtering glare and ghost images so the system sees the joint, not the noise. With true RGB on side cameras and higher resolution, AOI can now pick out tiny solder balls and subtle surface issues at speed - fuel for stronger AI autoprogramming and more reliable defect classification.
If throughput is king, data is queen. We talk about closing the loop from inspection back to the line to prevent bad lots - flagging stencil drift, placement offsets, and paste issues before they explode into scrap. Then we spotlight Nordson's launched SQ5000 Pro: faster cycle times, a wider field of view, and configurable 7 µm or 10 µm sensors designed for modern PCBA demands. Whether you’re chasing yield on high‑value GPUs or balancing AOI with AXI on dense boards, this conversation offers a practical roadmap for choosing the right tool, tackling reflectivity, and using insight to drive predictable quality.
HEAR complete PODCAST
1. Why is Automated Optical Inspection (AOI) critical for advanced package PCB assembly?
AOI helps manufacturers detect soldering defects, coplanarity issues, and placement errors quickly, ensuring high-value components such as GPUs and chiplets meet quality standards before defects impact yield.
2. When should manufacturers use AOI instead of X-ray inspection (AXI)?
AOI is the fastest method for identifying visible defects and process deviations, while X-ray inspection is better suited for inspecting hidden features such as solder joints beneath BGAs and other concealed connections.
3. What challenges do reflective and high-mix PCB assemblies create for inspection systems?
Reflective components, shiny dies, and diverse component types can create glare and imaging artifacts that make defect detection difficult using conventional inspection methods.
4. How does three-phase profilometry improve AOI performance?
Three-phase profilometry projects fringe patterns onto a PCB and captures them from multiple angles to generate accurate 3D height maps, enabling precise measurements and defect detection.
5. What types of defects can 3D AOI detect?
3D AOI can verify:
- Coplanarity
- Corner fill quality
- Underfill consistency
- Component height
- Solder joint integrity
6. What is multi-reflection suppression technology?
Multi-reflection suppression filters out glare, reflections, and ghost images, allowing the inspection system to focus on actual solder joints and component features rather than optical noise.
7. How do true RGB side cameras enhance inspection capabilities?
True RGB side cameras provide improved color accuracy and higher-resolution imaging, helping identify tiny solder balls, subtle surface defects, and other challenging quality issues.
8. How does AOI data improve manufacturing yield?
Inspection data can be fed back into the production line to identify stencil wear, placement offsets, and solder paste issues early, preventing defective lots and reducing scrap.
9. What are the key benefits of Nordson's SQ5000 Pro AOI system?
The SQ5000 Pro offers:
- Faster cycle times
- Wider field of view
- Configurable 7 µm or 10 µm sensors
- Enhanced inspection accuracy for modern high-density PCB assemblies
10. How can manufacturers optimize the use of AOI and AXI together?
A balanced inspection strategy uses AOI for rapid detection of visible defects and process monitoring, while AXI is employed for hidden solder joints and complex package structures, creating comprehensive quality control and improved yield.
