Acoustic Inspection: The Key to Semiconductor Reliability
Acoustic inspection stands as a silent sentinel in semiconductor manufacturing, detecting microscopic defects that could lead to catastrophic failures in high-value applications. Bryan Schackmuth, Senior Product Line Manager at Nordson Test and Inspection, reveals how this technology has evolved from laboratory tools to production-line essentials.
When ultrasound encounters even the tiniest air gap—we're talking hundreds of angstroms—it reflects completely, making acoustic imaging uniquely powerful for evaluating bonds between materials. While optical inspection shows surface defects and X-ray reveals density variations, acoustic inspection peers between layers, identifying delamination and other hidden flaws that might otherwise escape detection until field failure.
The challenges of advanced packaging have driven significant innovation in acoustic inspection technology. As manufacturers stack more die, create complex interconnects, and push toward heterogeneous integration, the value of each wafer increases dramatically. Nordson's SpinSam system represents a breakthrough in this space, replacing traditional raster scanning with a rotational approach that achieves 41 wafers per hour—eight times faster than previous generation technology—while maintaining resolution down to 10 microns.
Beyond pure speed, the system's spinning scan technology offers unique advantages for edge inspection where defects are more common due to coefficient of thermal expansion effects. The modular design allows maintenance on individual scanners while others continue operating, maximizing uptime in production environments. Most exciting is the integration of AI and machine learning for defect detection, moving beyond simple thresholds to analyze complex multilayer images simultaneously.
Want to see how your inspection strategies might benefit from these advances? Check out Nordson's SpinSam technology at nordson.com and discover how acoustic inspection is helping manufacturers achieve higher yields and more reliable products in today's most demanding semiconductor applications.
As a semiconductor industry community, 3D InCites brings to life the people, the personalities, and the minds behind heterogeneous integration and related technologies in a uniquely personal way. The goal is to inform key decision-makers about progress in technology development, design, standards, infrastructure, and implementation.The 3D InCites Podcast provides a forum for our community members to discuss all kinds of topics that are important to running a business in the semiconductor industry, from marketing to market trends, important issues that impact our industry, and our success stories.
As a semiconductor industry community, 3D InCites brings to life the people, the personalities, and the minds behind heterogeneous integration and related technologies in a uniquely personal way. The goal is to inform key decision-makers about progress in technology development, design, standards, infrastructure, and implementation.The 3D InCites Podcast provides a forum for our community members to discuss all kinds of topics that are important to running a business in the semiconductor industry, from marketing to market trends, important issues that impact our industry, and our success stories.
Inspektion & Metrologie Equipment
Unsere Inspektions- und Messgeräte haben weltweit großen Erfolg. Nachfolgend finden Sie einige unserer bewährten zerstörungsfreien Technologien.
AMI SpinSAM – Scannen – Akustisch – Mikroskopie
Branchenführender Durchsatz für die gleichzeitige Inspektion von vier 300-mm-Wafern Führende Standfläche / UPH Führende...
WeiterSQ7000+TM Multifunktion für 3D AOI, SPI & CMM
Das Multifunktionssystem SQ7000+ mit Multi-Reflection Suppression® (MRS®)-Sensortechnologie bietet eine hohe Auflösung,...
WeiterAXI XS-Serie
Die hochauflösende Inline-AXI-Plattform für 3D-Inspektion liefert unglaubliche Details für Nordsons...
WeiterMXI QUADRA™ 7 Pro
Die Serie Quadra™ Pro erzeugt Bilder in einer bisher unerreichten ultrahohen Auflösung. Die eigenentwickelte Dual Mode...
WeiterMXI X-Plane
Die X-Plane-Technologie bietet CT-Funktionalität mit hoher Auflösung und Vergrößerung überall auf der Leiterplatte,...
WeiterSQ3000M2
Überlegene Leistung, ideal für Drahtbond-Anwendungen. Die automatisierte optische Inspektion (AOI) SQ3000M2 stellt...

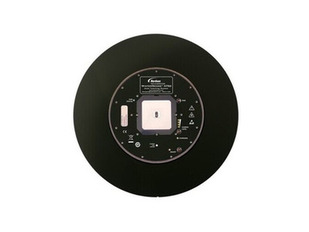

WeiterWaferSense® Auto Teaching System™ (ATS2)
Erfassen Sie dreidimensionale Versatzdaten (x, y und z), um schnell Wafer-Übertragungspositionen zu trainieren.

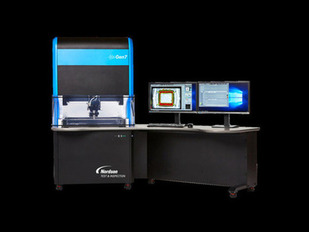

WeiterAMI Gen7 C-SAM®
