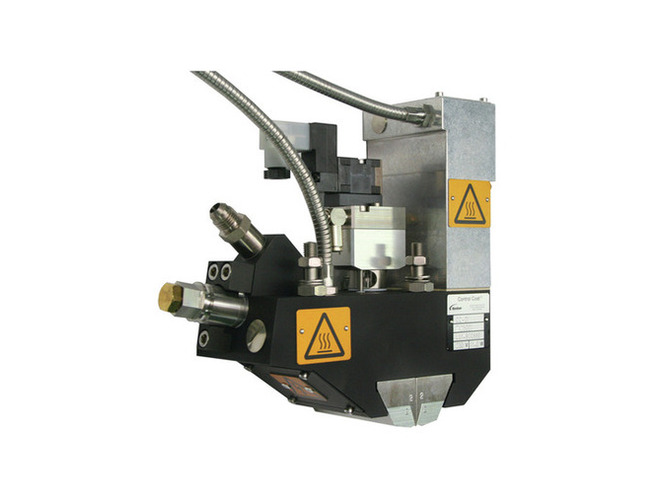

Control Coat® QE Applicators

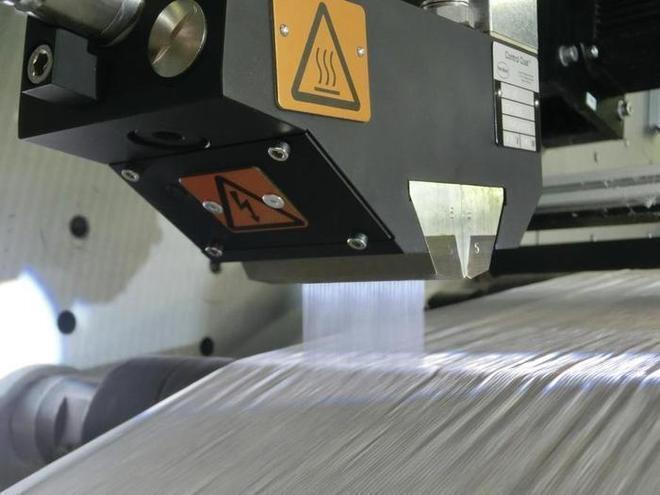

Control Coat QE applicators fiberize hot melt adhesive for a consistent, uniform pattern in high-speed nonwoven or web coating applications. Using non-contact spray coating, Control Coat applicators provide excellent edge control and pattern definition.
Overview
- Produce highly dense, uniform patterns for maximum coverage, or open patterns for permeability.
- Maintain tight side, leading and trailing edge control and superior cutoff.
- Reduce heat distortion or strike-through on extremely thin or heat-sensitive substrates.
- Enhance product features such as breathability, permeability and softness.
Specifications
| Operating Temperature | 200° C (392° F) maximum |
| Application Width | 5 to 475 mm (0.2 to 18.7 in.) |
| Temperature Sensors | Ni120 or PT100 |
| Spray Air Pressure | 0.8 to 1.5 bars (11 to 22 psi) |
| Maximum Cycles | 9,000 cycles/minute |
| Control Voltage | 24 VDC |
| Electrical Requirements | 230 VAC, 50/60 Hz |
